MILD STEEL GENERAL PURPOSE (MSGP)
NEXA 6013SS
Heavy Coated Mild Steel Electrode
AWS A/SFA 5.1 E6013
IS 814: ERR 4222X
Applications
- for wagon building
- Locomotive fabrication
- Suitable for thin sheets
- Auto Components & Steel furniture
Characteristics
- Heavy rutile type coating
- Superior welding characteristics
- All position welding capability
- Radiographic weld quality
Chemical Composition
| C | Mn | Si |
|---|---|---|
| 0.1 | 0.6 | 0.5 |
Mechanical Properties
| UTS (MPa) | YS at 0.2% off., MPa | El% | CVN Impact ay 0°C |
|---|---|---|---|
| >430 | >330 | >22 | >50 |
Welding Currents (AC (50 OCV min.)/ DCEN)
| 2.5 x 350 mm | 3.15 x 350 mm | 3.15 x 450 mm | 4.0 x 450 mm | 5.0 x 450 mm |
|---|---|---|---|---|
| 60-100 | 90-120 | 90-120 | 140-180 | 180-220 |
Product Specifications
Current Type
AC (50 OCV min.)/ DCEN

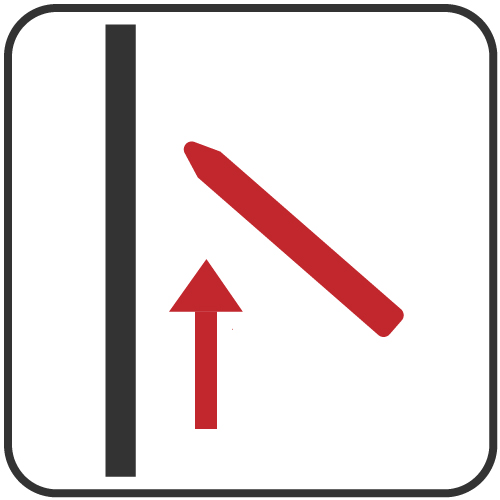

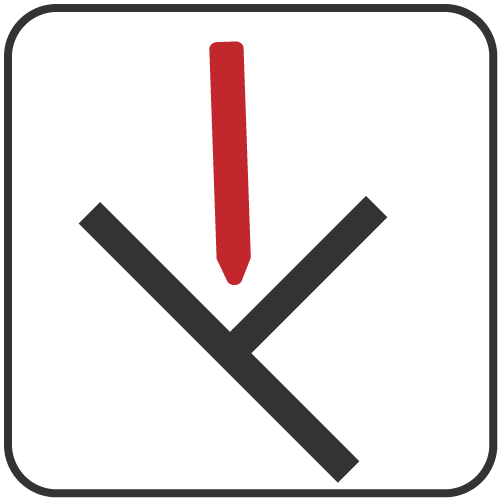

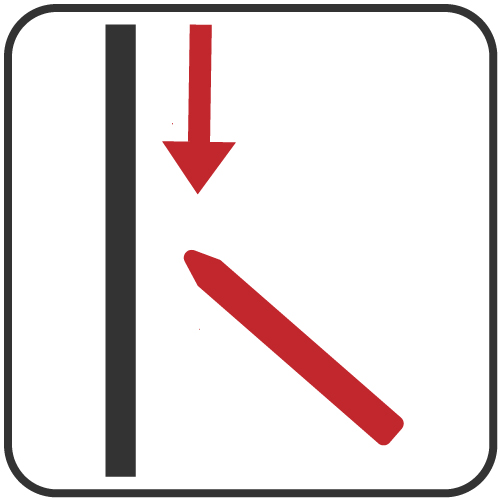

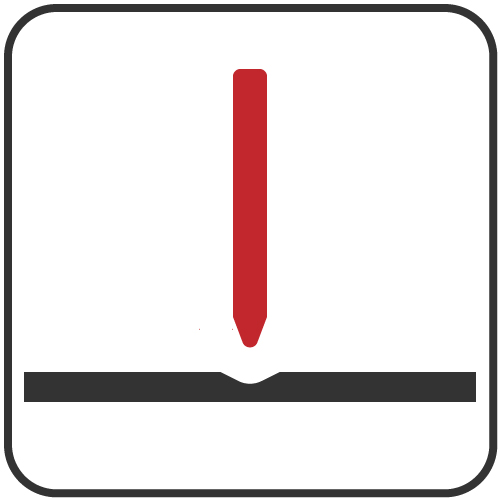

Welding Positions
Packaging
- Standard carton packing of 20 kg box containing 4 cartons of 5kgs each
Conditions (Pre-Drying)
- 100°C for min. 30mins
